SOUTHWIRE 55082703

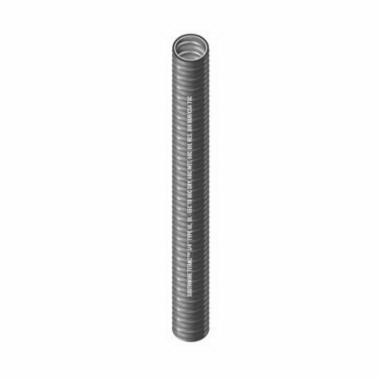

Titan®2 Type UL LFMC is manufactured with a spiral wound strip of heavy-gauge, corrosion-resistant, hot-dipped galvanized steel. The core is constructed with a square locked steel strip with an integral copper bonding strip enclosed within the steel convolutions. The core is constructed with a fully interlocked steel strip. A rugged, flame-retardant, flexible PVC jacket is extruded over the steel core. The gray jacket resists oils, mild acids and exposure to sunlight.
| Color | : | Gray |
| Finish | : | Galvanized |
| Inside Diameter | : | 0.82 to 0.84 in |
| Length | : | 100 ft |
| Material | : | Steel |
| Operating Temperature | : | -55 to 80 deg C |
| Outside Diameter | : | 1.03 to 1.05 in |
| Type | : | Flexible, Type UL |
| Trade Size | : | 3/4 in |
- A protective thermoplastic outer jacket which seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases
- Smooth metal interior for easy wiring pulling
- UV, sunlight-resistant jacket
- Rated for temperature range of -55 to 80 deg C, 60 deg C oil (-67 to 176 deg F, 140 deg F oil)
- Accepts standard metallic liquidtight fittings
- Rated for direct burial applications including concrete encasement
Specification Sheet
