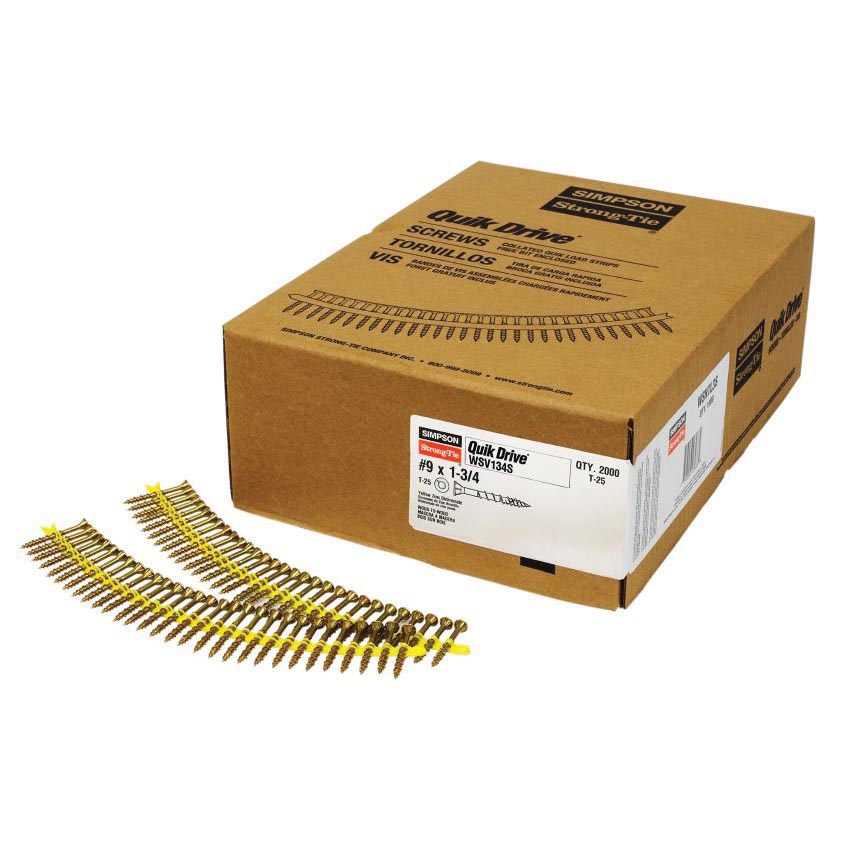

Simpson Strong-Tie WSV134S

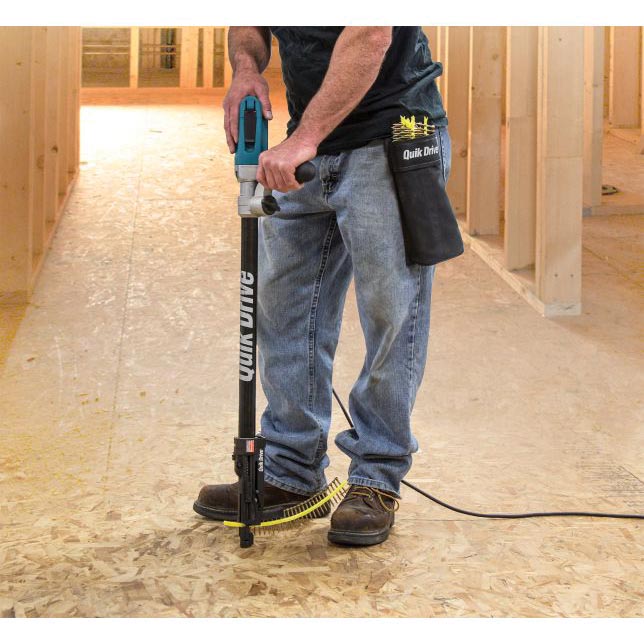

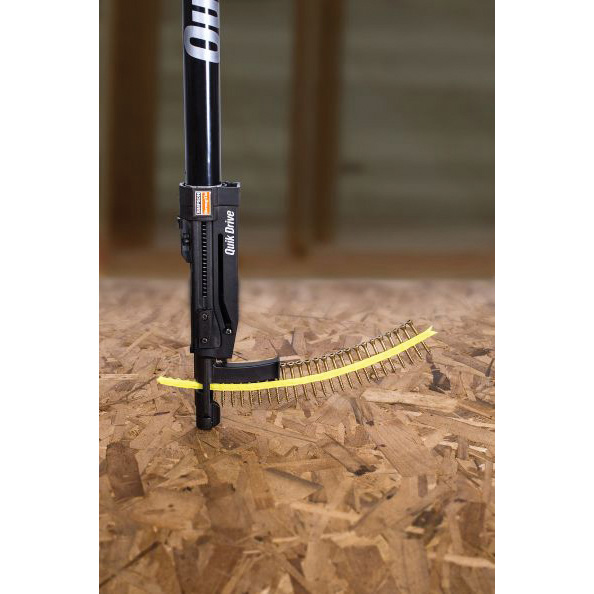

Simpson Strong-Tie® has re-engineered its popular subfloor screw to reduce driving force and increase installation speed. The new Strong-Drive WSV subfloor screw has been developed for fastening subfloor sheathing using the Quik Drive® auto-feed screw driving system.
| Applicable Materials | : | Wood |
| Finish | : | Yellow-Zinc Dichromate |
| Material | : | Steel |
| Suitable for | : | Quik Drive PRO200S, PRO250, PRO300S, PROCCS+, PROSDD Decking System |
| Thread Size | : | #9 |
| Length | : | 1-3/4 in |
| Head Type | : | Ribbed Wafer |
| Drive Type | : | 6-Lobe, Torx |
| Drive Size | : | T25 |
- Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving and makes for up to 20% faster driving
- Less installation torque also means less wear on tools
- Deep 6-lobed recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
- The holding power of WSV screws reduces the gaps between the joist and subfloor that cause floor squeaks
- WSV screws can be easily backed out, allowing for future access to floor cavities
Specification Sheet
