Simpson Strong-Tie DIAB62 Drop-In Anchor, 5/8 in Dia, 2-1/2 in L, Carbon Steel, Zinc, 25/BX
- Model Number: DIAB62
- Dixieline SKU: 277065
-
Simpson Strong-Tie DIAB62 Drop-In Anchor, 5/8 in Dia, 2-1/2 in L, Carbon Steel, Zinc, 25/BX
-
Promo Price:
-
- Alternate Item #: SSTDIAB62
- Web SKU: 103137034
Simpson Strong-Tie DIAB62

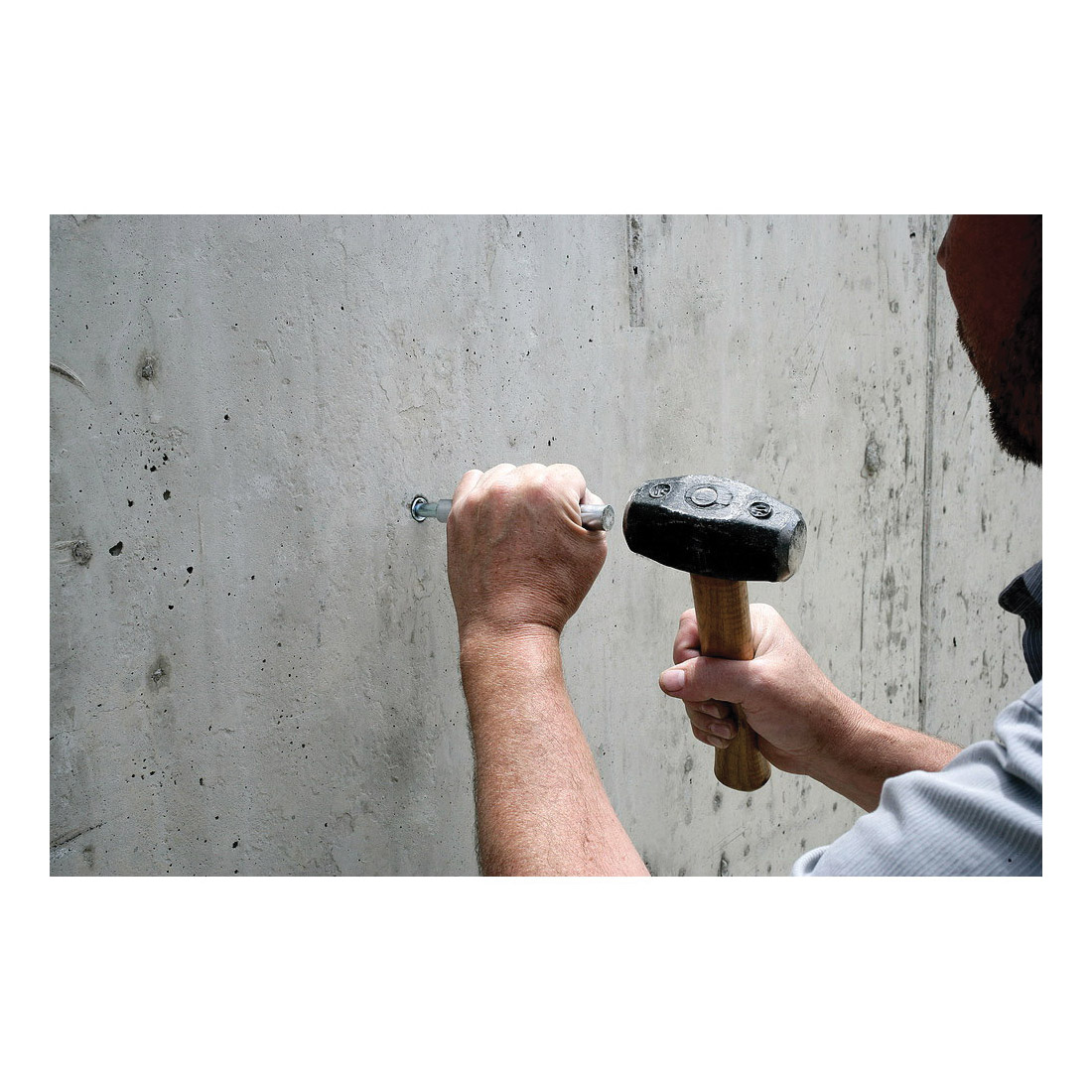

Simpson Strong-Tie introduces a new, re-designed Drop-In anchor (DIAB) that provides easier installation into base materials. Improved geometry in the pre-assembled expansion plug improves setting capability so the anchor installs with 40% fewer hammer strikes than previous versions. These displacement-controlled expansion anchors are easily set by driving the plug toward the bottom of the anchor using either the hand- or power-setting tools. DIAB anchors feature a positive-set marking indicator at the top of the anchor helping you see more clearly when proper installation has taken place.
| Diameter | : | 5/8 in |
| Drill Size | : | 7/8 in |
| Finish | : | Zinc |
| Length | : | 2-1/2 in |
| Material | : | Carbon Steel |
| Minimum Concrete Thickness | : | 3-3/4 in |
| Minimum Embedment Depth | : | 2-1/2 in |
| Shear Strength | : | 12, 190 lb |
| Tensile Strength | : | 9060 lb |
| Thread Length | : | 1 in |
- New design offers easier installation than previous drop-in anchor design sets with 40% fewer hammer hits
- Positive-set marking system indicates when anchor is properly set

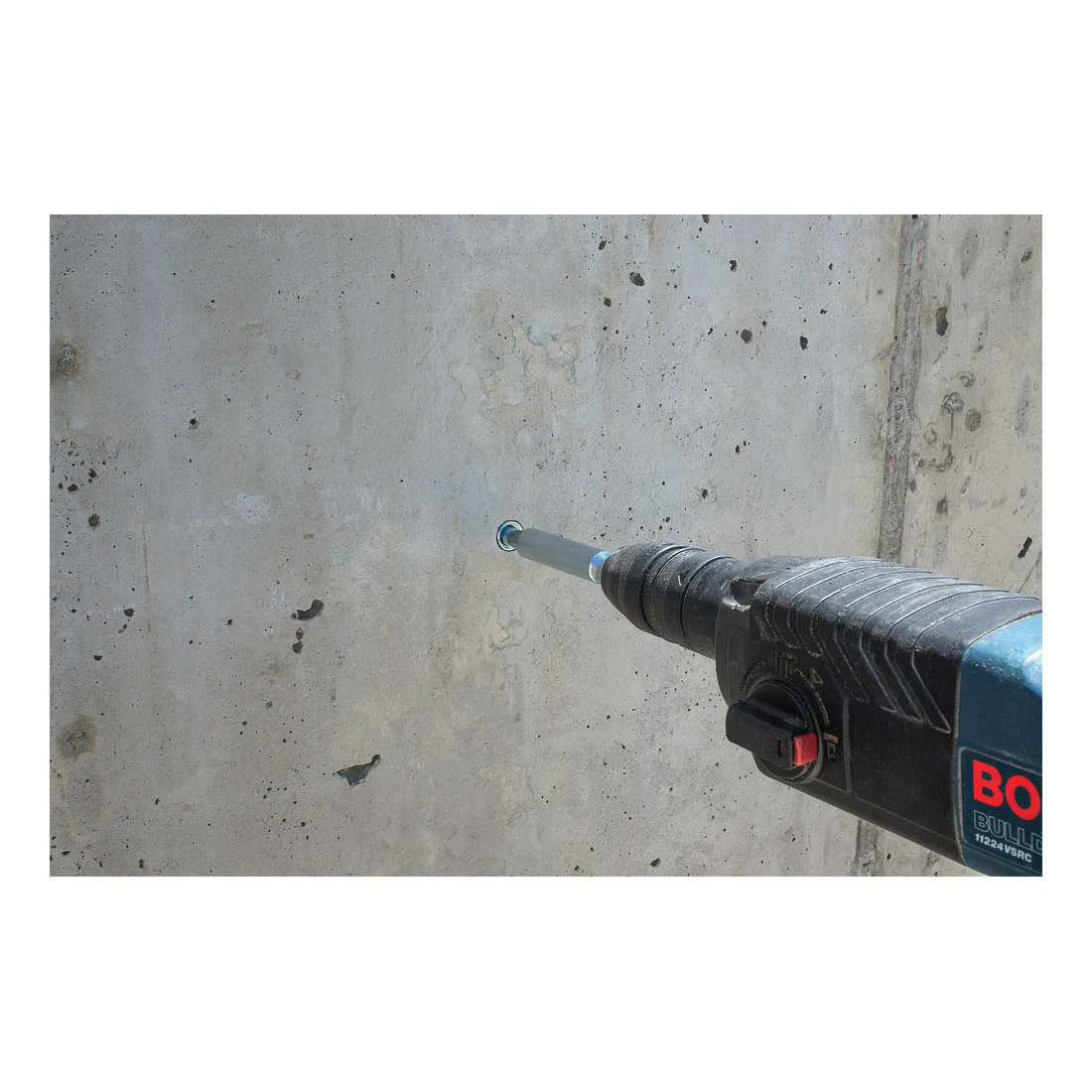

- Hand and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
Specification Sheet
