DeWalt DCLE34520G
Tackle professional-level projects with the 20 V MAX XR® five Spot Green Line Laser that easily integrates with the tools you already have. Now offered as a part of the 20 V MAX cordless platform, this laser delivers reliable performance without the inconvenience of power cords, featuring a sturdy magnetic mount, flexible rotating head, fine adjust knob for control and locking pendulum for enhanced usability. Use for two full work days with a 24 hr runtime when using the included 20 V MAX 2.0 Ah battery. The kit includes the five Spot Green Line Laser, one 20 V MAX 2 Ah battery, charger, ceiling/wall bracket and laser target in a DeWALT® TSTAK® case.
| Accuracy | : | 1/8 in |
| Battery Capacity | : | 2 Ah |
| Battery Type | : | Lithium-Ion |
| Battery Voltage | : | 20 V |

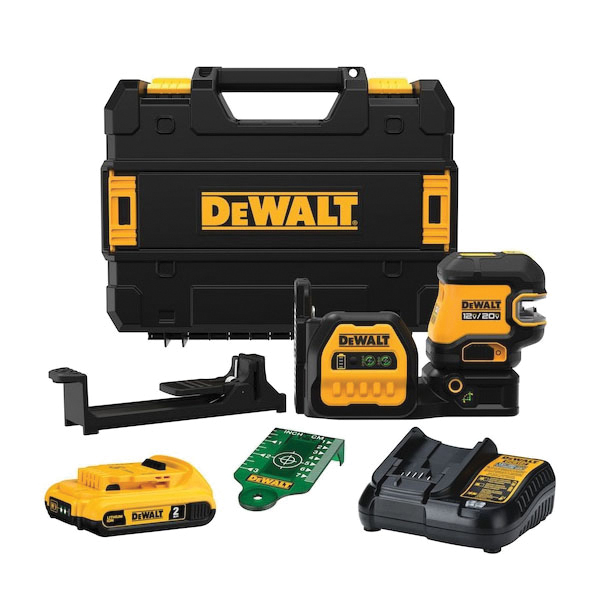

| Includes | : | (1) Five Spot Green Line Laser, (1) 20V MAX 2 Ah Battery, (1) Charger, (1) Drop Ceiling Bracket, (1) Target Card and (1) TSTAK Case |
| Interior/Exterior | : | Interior |
| Laser Projection Type | : | Cross Line |
| Leveling Type | : | Automatic |
| Measuring Range | : | 330 ft |
| Mounting Type | : | Magnetic |
| Number of Beams | : | 2 |
| Number of Dots | : | 5 |
| Operating Temperature | : | 39.2 to 104 deg F |
| Laser Color | : | Green |
- Individual laser line and laser spot On/Off providing control of lines/spots and extending run times when possible
- Jobsite durability: powerful magnetic mount supports system with battery sizes up to 8 Ah
- Up to 24 hr of runtime on single 20 V max 2 Ah battery and longer runtimes with larger capacity batteries
- 280 ft visible distance and 330 ft max detector range
- Accurate readings within 1/8 in at 30 ft and fine adjustment knob for enhanced correctness
Instruction/Installation Manual
